ENVIRONMENT AND BENEFITS

Respect the environment

for a better future

Environmental resources represent our primary source of life. They are not an inexhaustible resource and our behavior with our surroundings requires a careful strategy on the use of resources, aimed at respecting the environment and keeping man's relationship with nature unchanged.

Respect the environment

for a better future

Environmental resources represent our primary source of life. They are not an inexhaustible resource and our behavior with our surroundings requires a careful strategy on the use of resources, aimed at respecting the environment and keeping man's relationship with nature unchanged.

In fact, the use of resources must be sustainable, allowing the needs of current generations to be met without compromising those of future generations.



Constructing buildings with almost zero consumption using Isovista panels implies the construction of perfectly insulated casings, where the role attributed to the insulation system is to improve the hygiene and comfort of the environments, while reducing energy consumption and emissions.

LET IMPROVE THE ENVIRONMENT

Insulating well is not only a specific legal obligation, but it is everyone's duty towards the environment. ISOVISTA®, in addition helping to create an ideal temperature in the house, also allows energy savings in heating or cooling which helps to improve the environment around us.

ambiente-isovista1
ambiente-isovista2
TRANSMITTANCE VALUES U (W/M2K)
TYPE OF CONSTRUCTION THICKNESS (mm) Start transmittance ISOVISTA® 80mm ISOVISTA® 100mm ISOVISTA® 120mm ISOVISTA® 140mm
Traditional concrete DIN 1045 2400 kg/m3 200 3,86 0,49 0,38 0,31 0,26
Traditional concrete DIN 1045 2400 kg/m3 250 3,50 0,48 0,37 0,31 0,26
Lightweight concrete DIN 4232 1600 kg/m3 250 2,49 0,46 0,36 0,30 0,25
Empty blocks in concrete 1300 kg/m3 240 2,29 0,49 0,38 0,31 0,26
Empty blocks in concrete 1300 kg/m3 240 1,99 0,45 0,35 0,29 0,25
Bricks [2000 kg/m3] 240 2,45 0,45 0,36 0,30 0,25
Bricks [2000 kg/m3] 360 1,87 0,43 0,34 0,29 0,24
Honeycomb clay brick [870 kg/m3] 200 1,57 0,41 0,33 0,28 0,24
Honeycomb clay brick [870 kg/m3] 250 1,33 0,39 0,32 0,27 0,23
XLAM panel thickness 9,4cm 94 1,05 0,36 0,30 0,25 0,22
XLAM panel thickness 12cm 120 1,05 0,34 0,28 0,24 0,21
Autoclaved aerated concrete thickness 30cm 300 0,52 0,27 0,23 0,20 0,18

The energy performance of the buildings is improved, ensuring high conditions of summer and winter comfort with considerable energy and economic savings. The rooms remain healthy thanks to the high transpiration of the walls to water vapor.
The attached table illustrates the transmissions that can be obtained on different types of walls currently used in construction by coupling the
ISOVISTA® system.

casa-con-isovista

with ISOVISTA®

casa-senza-isovista

without ISOVISTA®

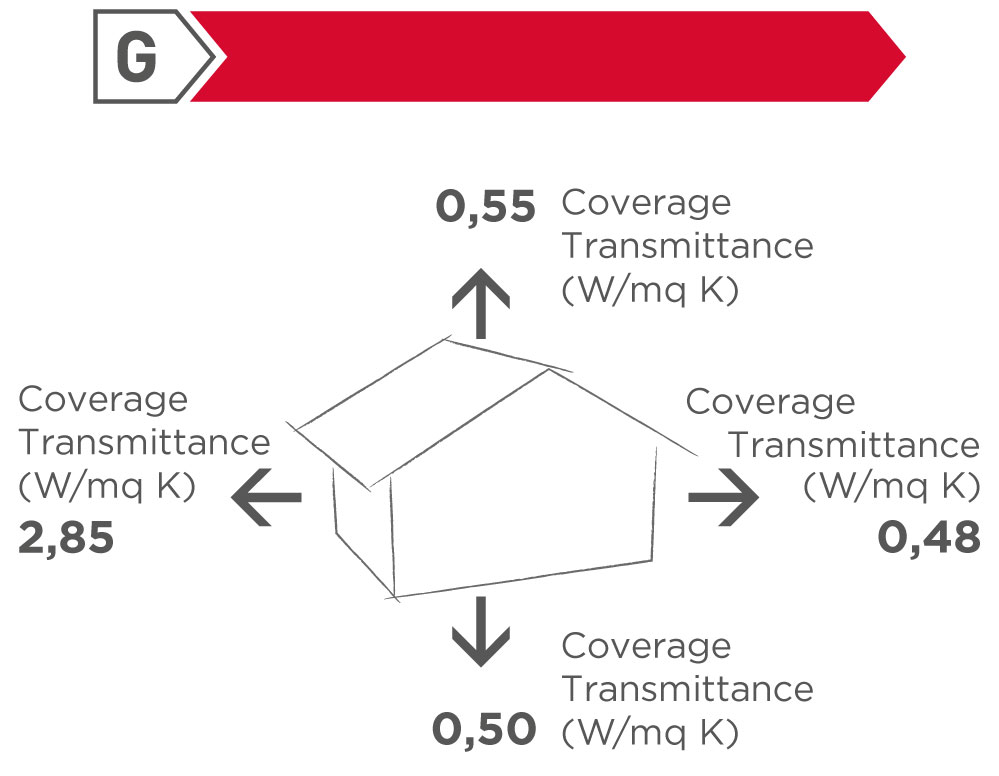

isovista-casaG-EN

Type of building

Traditional house
“CLASS G”

Traditional materials
Normal oil / methane boiler

Primary energy consumption
3723 M3 methane / year
2525 L diesel / year
Total consumption
157 KW h/m2 a

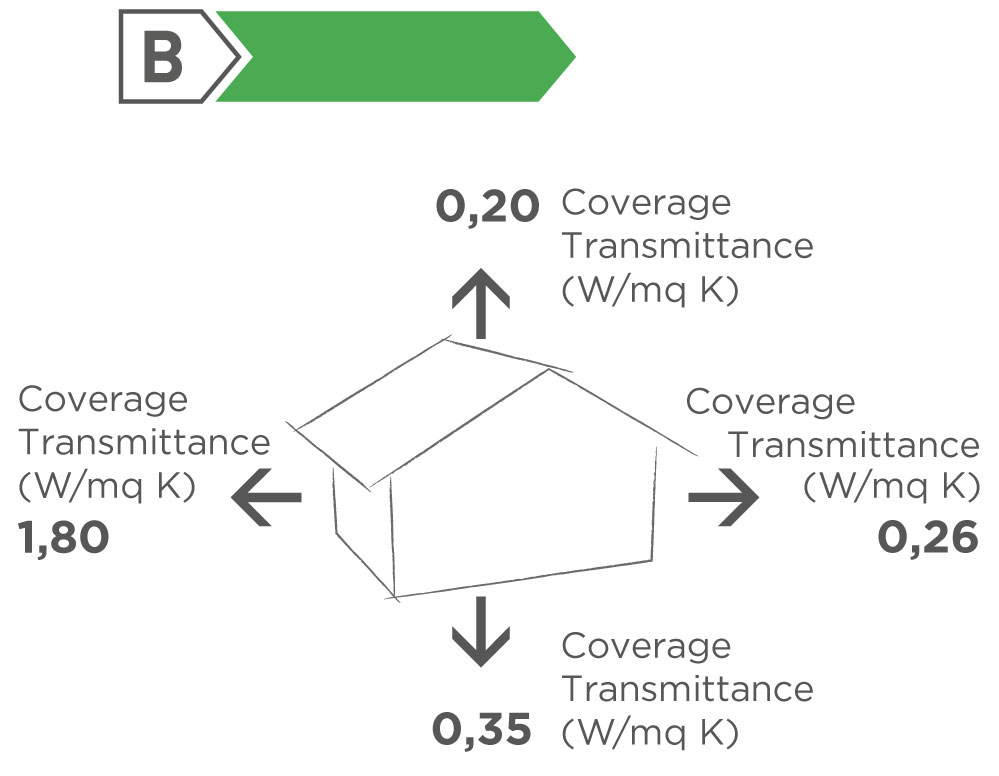

isovista-casaB-EN

Type of building

Traditional house
“CLASS B”

Coated with ISOVISTA®
from 8cm
Normal oil / methane boiler

Primary energy consumption
1740 M3 methane/year
1176 L diesel/year
Total consumption
74 KW h/m2 a

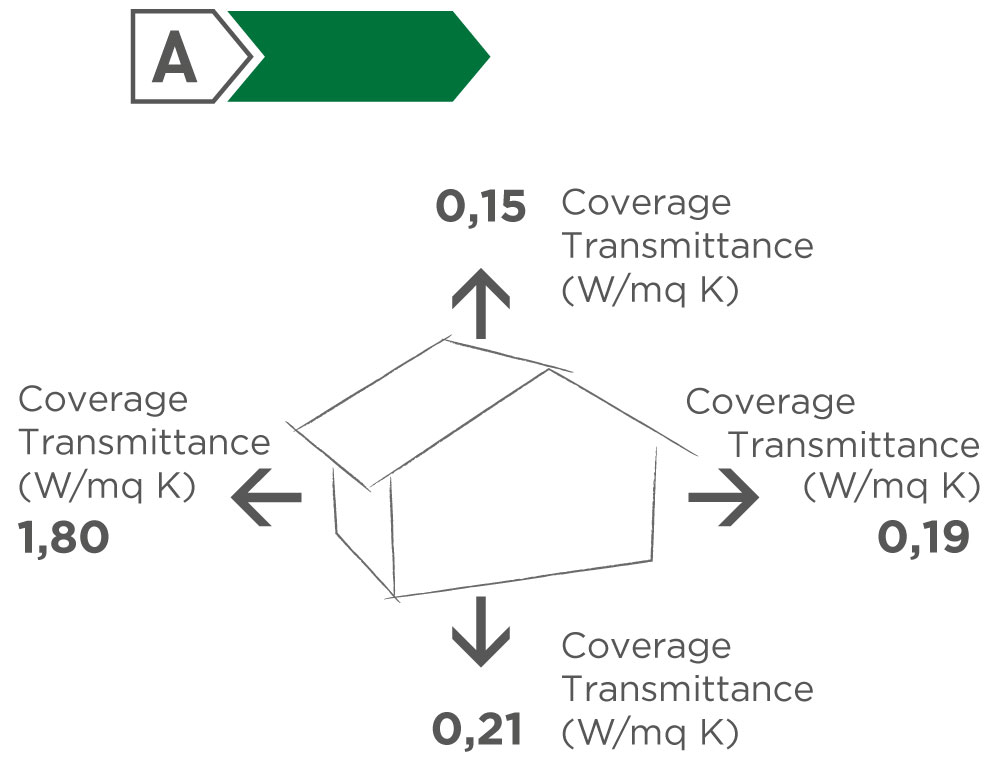

isovista-casaA-EN

Type of building

Traditional house
“CLASS A”

Coated with ISOVISTA®
from 14cm
Normal oil / methane boiler

Primary energy consumption
874 M3 methane/year
591 L diesel/year
Total consumption
36 KW h/m2 a

REFERENCES

PAOLO STORNELLI - PRIVATE HOUSE

"I discovered ISOVISTA through the internet: I was looking for an effective insulation, elegant and durable. The result is  really amazing both from the point of view of the insulation and of the  design, the system ...

Arch. ANTONIO CERIBELLI - ARCHITECT

"I ‘m initially interested in ISOVISTA because I was looking for a solution that offered me the expressive ability of the facing brick (also in correspondence of the angular conjunctions ...

DOMENICO - PRIVATE HOUSE

"I chose the ISOVISTA system because it combines the beauty of the brick and the security of the insulation. I'm excited and I certainly would use it again. I recommend it both to those who love the" beauty "that  to those who love ...
